Vee packing

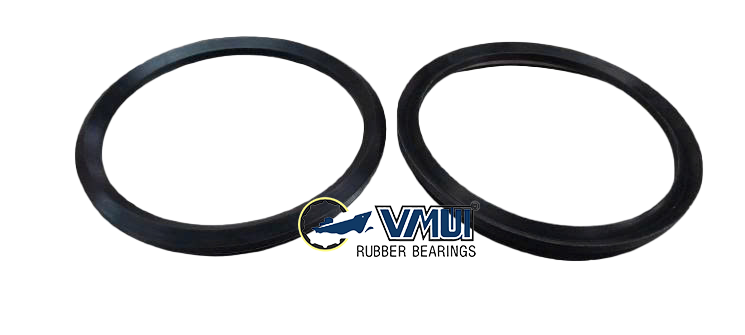

Vee packing seals is a multi-lip technical sealing set, also known in the market as V-packing or Chevron packing. Unlike a single seal, this product is typically used as a complete set, with a common structure including 1 male adaptor, 1 female adaptor, and center rings in between. This sealing type is widely used for rod, piston, and other reciprocating positions in hydraulic systems, pumps, valves, and many other industrial applications.

Vee packing seals products manufactured by Anh Tri Tue are custom-made to meet specific requirements, making them suitable for replacement, refurbishment, or new sealing set production in industrial equipment. For this product line, the key factor is not only the size, but also the complete set configuration, the number of center rings, the male/female arrangement, and the material selected to match the working medium, pressure, and actual operating conditions.

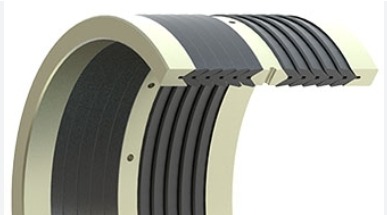

Structure of a Vee packing seals set

According to common market configurations, a Vee packing seal set usually includes:

• Male adaptor
• Female adaptor
• Center rings in between

In this structure, the male and female adaptors are the two end rings that help transmit axial compression force, stabilize the seal set, and support the center rings in working effectively. The center rings are the main sealing elements. Depending on the design, the number of center rings can vary according to working pressure and actual application requirements. Some standard market configurations use 3 or 5 center rings, while higher-pressure applications may require more.

Technical references also show that the male adaptor is typically positioned on the load side to distribute pressure onto the sealing lips of the center rings, while the female adaptor serves as a support element, stabilizing the sealing set and helping protect the center rings from deformation or extrusion under high pressure. For this reason, when the market refers to Vee packing, it is generally understood as a complete sealing set rather than a single ring.

Features of Vee packing seals

• A complete sealing set, not a single component
• Common structure includes male adaptor, female adaptor, and center rings
• Suitable for reciprocating sealing assemblies
• Performs well under medium to heavy pressure conditions
• The number of center rings can be customized according to actual technical requirements
• Suitable for repair, replacement, refurbishment, and new sealing set production

Applications

Vee packing seals is widely used in systems that require stable sealing performance, high durability, and good adaptability to actual operating conditions. In the market, this product is commonly found in:

• Hydraulic cylinders
• Rod, piston, and plunger assemblies
• Industrial valves
• Industrial pumps and reciprocating pumps
• Hydraulic presses, telescopic hoists
• Heavy-duty industrial mechanical equipment
• Oil, water, air systems, and certain compatible industrial media

One notable advantage is that Vee packing is highly valued in applications involving vibration, pressure surges, less-than-ideal mechanical conditions, or equipment that already has a certain level of wear. Some manufacturers also offer back-to-back configurations for bidirectional sealing in double-acting cylinders. This is why Vee packing seal is often chosen for industrial systems that require better durability and easier maintenance than many other common sealing types.

Advantages of Vee packing seals

• A complete sealing solution that supports stable operation under various working conditions
• Multi-lip structure helps improve sealing performance and distribute compression force more effectively
• Suitable for machine assemblies operating under medium to high pressure
• Relatively good adaptability to vibration, pressure surges, and certain mechanical misalignments
• Easy to configure according to actual application requirements
• Convenient for maintenance, replacement, and refurbishment of industrial equipment

Market materials and custom manufacturing capability

On the market, Vee packing seal can be produced from various materials depending on the service conditions, such as fabric-reinforced NBR, FKM, PTFE, PU, PA, or other material combinations. Some suppliers also distinguish between homogeneous center rings and fabric-reinforced center rings, with reinforced types typically used for higher-pressure applications. This shows that when custom-manufacturing Vee packing seal, material selection and seal set configuration are critical factors in ensuring durability and suitability for the intended application.

Notes for selecting Vee packing seals

To select and use this product effectively, it is important to clearly determine:

• Sealing assembly dimensions
• Whether the seal is for a rod or a piston
• Required seal set type: male, female, and number of center rings
• Working medium
• Pressure, temperature, and speed of motion
• Surface condition, wear level, and the structure of the existing machine assembly

For custom-made products, this information directly affects sealing performance, service life, and the practical replacement capability of the product.

Vee packing seal is a technical sealing solution in set form, widely used in hydraulic and industrial mechanical applications. Its distinctive feature lies in its complete set structure, including a male adaptor, female adaptor, and center rings, which helps improve sealing performance, enhance stability, and suit a wide range of operating conditions. With custom manufacturing capability, ATT Rubber can meet the needs for replacement, refurbishment, or new production of Vee packing seal based on the actual structure and service conditions required by customers.
