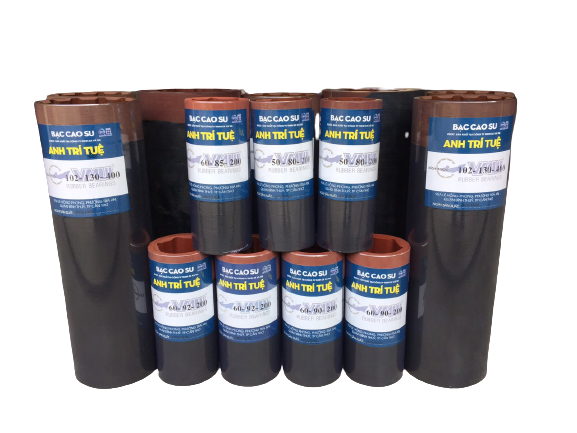

VMUI Plastic Headed Rubber Bearing has high elastic properties. The plastic head with high strength and hardness, low coefficient of friction helps to limit the compression of the propeller shaft weight on the rubber bearing hole, which reduces wear or deformation of the rubber surface. In addition, this hard plastic part tightly closes the rubber bearing, preventing garbage or drifting fishing nets drawn into the hole.
Application: It is easy to install or remove in place, even when the ship is anchored underwater, suitable for fishing vessels and small-capacity ships with a shaft diameter of 140 mm or less, or for rudder shaft bearing application.
Dimension table:
|
No. |
DIAMETER (mm) |
LENGTH (mm) |
|
|
SHAFT (A) |
OUTER DIAMETER (B) |
||
|
1 |
40 |
68 |
200 |
|
2 |
45 |
68 |
200 |
|
3 |
40 |
80 |
200 |
|
4 |
45 |
80 |
200 |
|
5 |
50 |
80 |
200 |
|
6 |
57 |
80 |
200 |
|
7 |
50 |
92 |
200 |
|
8 |
57 |
92 |
200 |
|
9 |
60 |
92 |
200 |
|
10 |
63 |
92 |
200 |
|
11 |
63 |
104 |
200 |
|
12 |
70 |
104 |
200 |
|
13 |
76 |
104 |
200 |
|
14 |
76 |
116 |
200 |
|
15 |
83 |
116 |
200 |
|
16 |
83 |
116 |
400 |
|
17 |
90 |
116 |
400 |
|
18 |
83 |
130 |
400 |
|
19 |
90 |
130 |
400 |
|
20 |
102 |
130 |
400 |
|
21 |
102 |
156 |
400 |
|
22 |
105 |
156 |
400 |
|
23 |
115 |
156 |
440 |
|
24 |
120 |
156 |
480 |
|
25 |
127 |
156 |
500 |
|
26 |
83 |
156 |
400 |
|
27 |
140 |
180 |
560 |
